Extech MA63 High Precision mA Clamp Meter True RMS AC/DC

The MA63 is an AC/DC current clamp with NCV voltage detector and full overload protection. Manual ranging clamp meter with three Current ranges and AC/DC voltage to 600V. The 6000mA range allows for low current measurements that may be used in the automotive industry. Unique VFC (variable frequency control) mode helps troubleshoot and diagnose HVAC applications that are variable frequency driven. The MA63 also features resistance, capacitance, frequency, diode and continuity measurements as well as data hold low battery indicator, and auto power off functions. Complete with test leads, carrying case, and two AAA batteries.

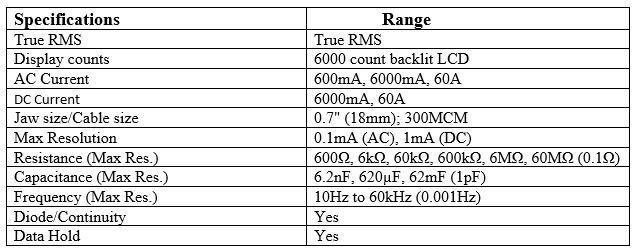

Specifications Range
True RMS True RMS
Display counts 6000 count backlit LCD
Jaw size/Cable size 0.7" (18mm); 300MCM
AC Current 600mA, 6000mA, 60A
DC Current 6000mA, 60A
Max Resolution 0.1mA (AC), 1mA (DC)
Basic ACA Accuracy (% rdg) AC: ±2.0%, DC: ±2.0%
AC Voltage (Max Res.) 6V, 60V, 600V (1mV)
DC Voltage (Max Res.) 600mV, 6V, 60V, 600V (0.1mV)
Resistance (Max Res.) 600Ω, 6kΩ, 60kΩ, 600kΩ, 6MΩ, 60MΩ (0.1Ω)
Capacitance (Max Res.) 6.2nF, 620µF, 62mF (1pF)
Frequency (Max Res.) 10Hz to 60kHz (0.001Hz)
Diode/Continuity Yes
Data Hold Yes
Dimensions 6.9x2.4x1.3" (175x60x33.5mm)
Weight 6oz (170g)

01599

Clamp Meters
